Elkhart Brass Chief XD® Fixed Flow Handline Nozzle

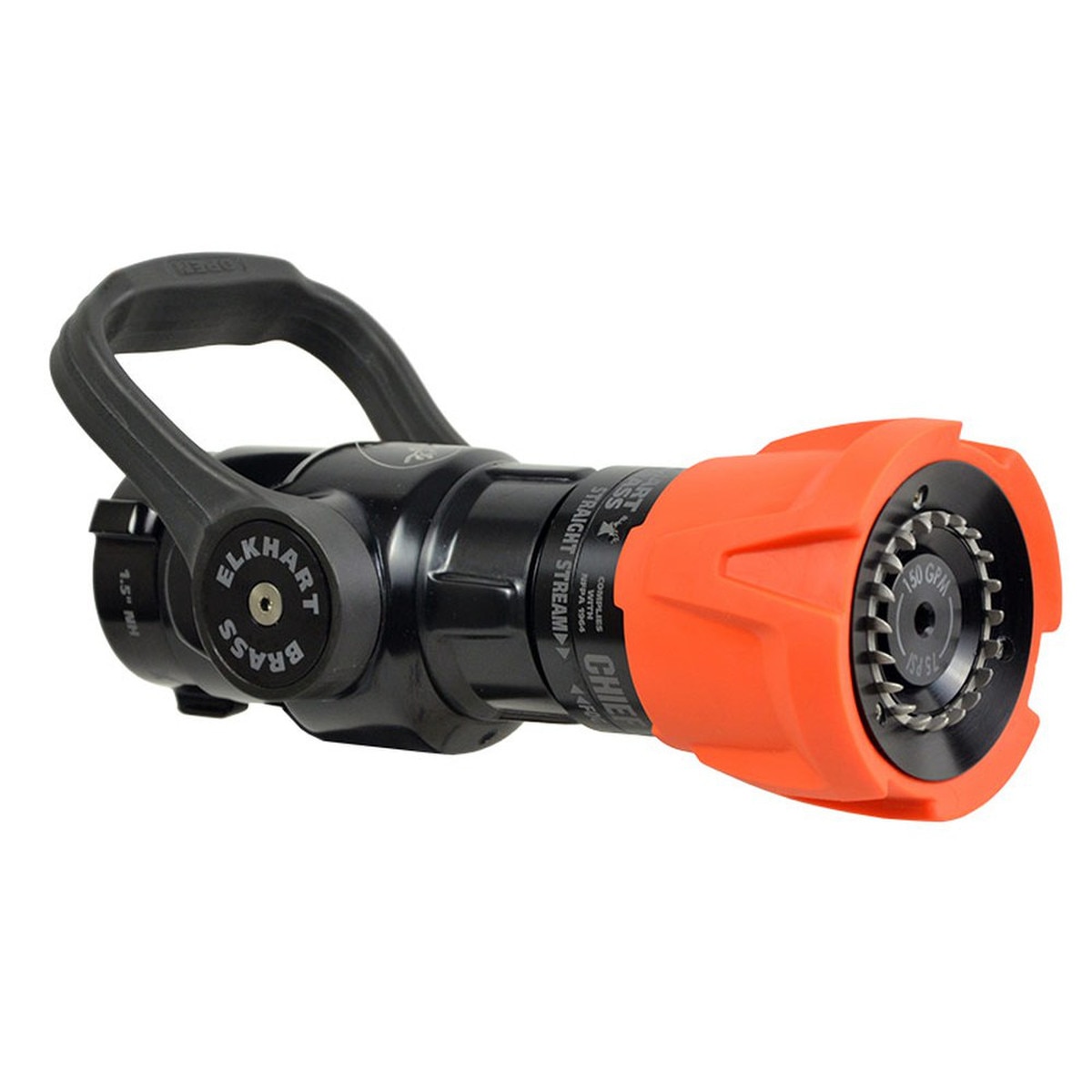

The Chief XD® is Elkhart Brass's fixed flow fog nozzle, built for a lifetime of service. It pairs a forged shutoff body with a forged metal bale handle and a full round metal ball for stream quality, and every indicator and marking is laser etched, so there are no labels to peel or scratch off.

Flow rates are available at 50, 75 and 100 psi, from 15 gpm up to 300 gpm depending on the model.

• Forged shutoff body and forged metal bale handle
• Full round metal ball for stream performance
• Laser-etched flow rates and indicators, no stickers
• Choice of spinning stainless steel teeth (standard) or fixed molded urethane teeth
• Ergonomic grip inserts, colour coded to your preference

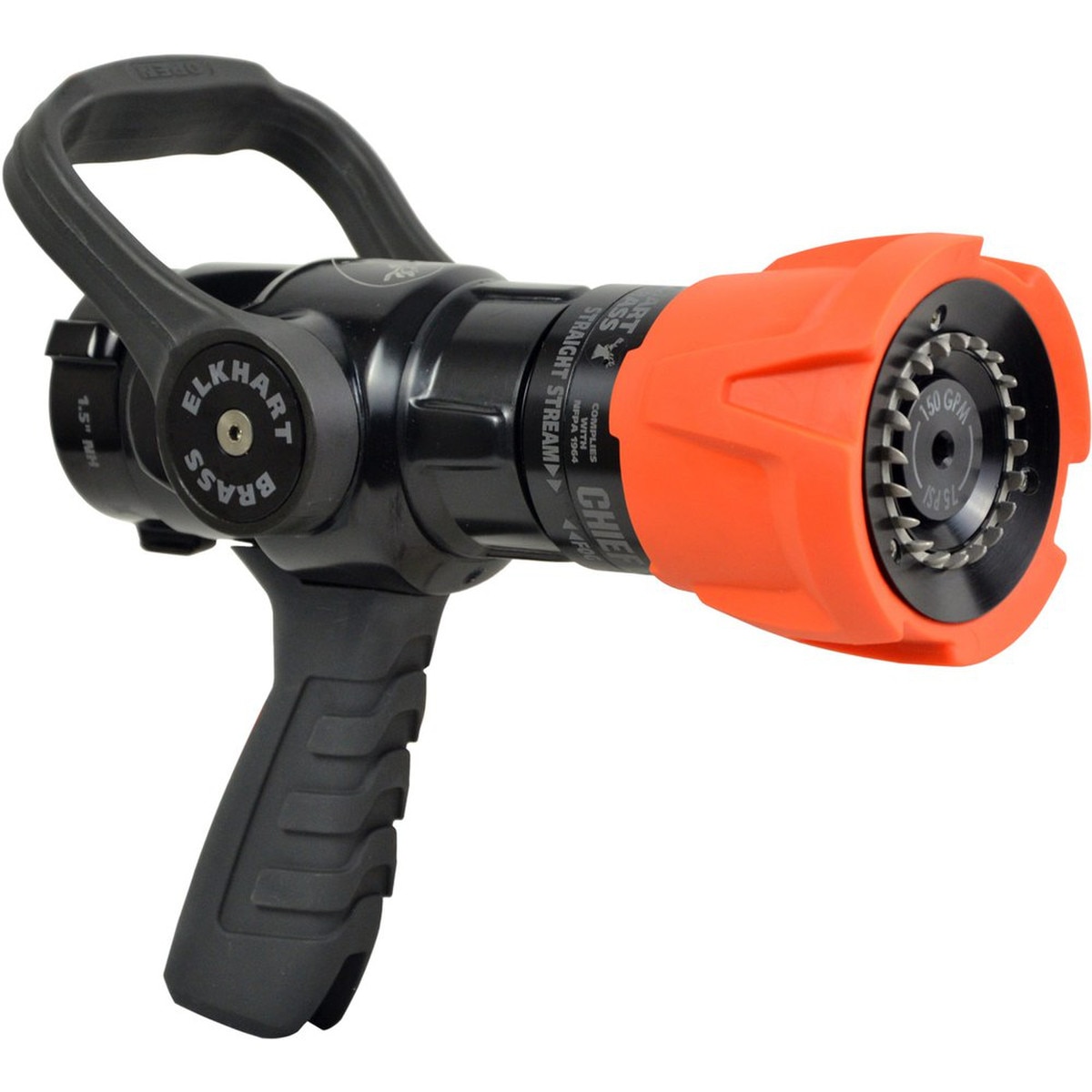

• Optional pistol grip on free swivel inlet models
• NHT inlet threads standard; NPSH, BSPP and department-specific threads available at no upcharge

Models

• Low-Range 1.0" free swivel inlet, 1.0" waterway: 15–60 gpm @ 100 psi
• Mid/Low-Range 1.5" free swivel inlet, 1.0" waterway: 60–150 gpm
• Mid-Range 1.5" free swivel inlet, 1-3/8" waterway: 95–200 gpm
• High-Range 1.5" free swivel inlet, 1-3/8" waterway: 185–300 gpm
• High-Range 2.5" free swivel inlet, 1-3/8" waterway: 185–300 gpm

Certified to NFPA 1964. Specify flow rate and pressure, insert colour, teeth type and inlet threads when ordering.
